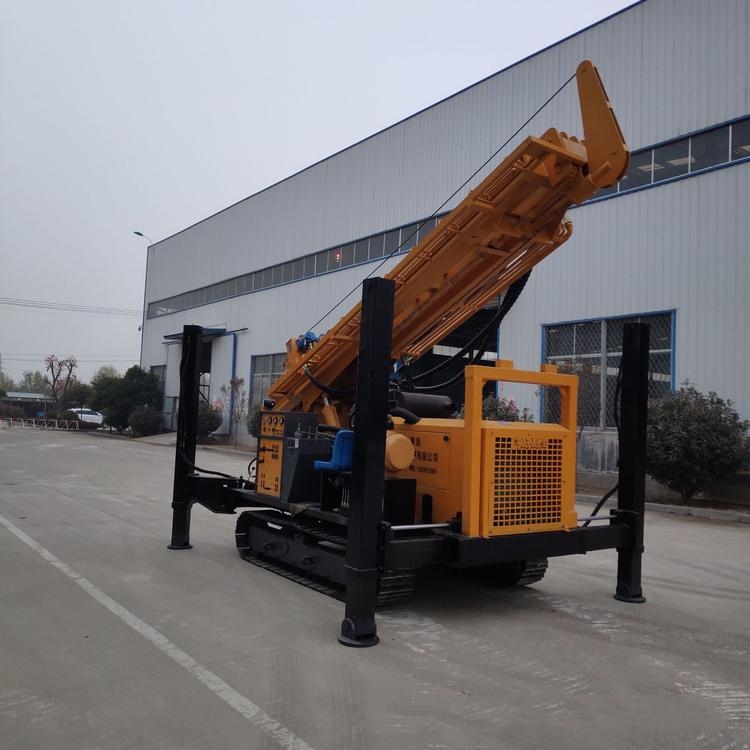

The Advantages of FY600 Drilling Rig Water Well
We hope to let you know our drilling rig water well advantages and win-win cooperation in the least time.
- Using the principle of pneumatic impact, the drilling footage is fast and efficient
- Equipped with steel crawler chassis, it has strong cross-country performance
- It is equipped with hydraulic high outriggers, which is convenient for loading and unloading trucks
- Centralized operating handles, reasonable layout, safe and feasible
- Excellent workmanship, durable
Key Specifications/Special Features:
Technical parameters of FY600 portable drill rig water well.
Model | FY600 | |
Gross weight | T | 12 |
Dimension | mm | 6200*2200*2950 |
Aperture | mm | 140-350 |
Drilling depth | m | 660 |
Drill rod caliber | mm | 102/108/114 |
Feed stroke | mm | 6600 |
Travel speed | km/h | 2.5 |
Lifting Power | T | 28 |
Grade ability | Max. | 30° |
Rising height from ground | mm | 250 |
Wind pressure | Mpa | 1.7-3.5 |
Air consumption | m³/min | 17-42 |
Engine power | kw | 132 |
Rotary speed | rpm | 45-110 |
Rotation torque | N.m | 8500-11000 |
1. Multifunctional: It can be used in various applications: small water wells, geothermal applications, soil surveys, and coring. It can meet the drilling needs of different rock formations and soils.
2. Convenient transportation: high support, easy loading; crawler chassis, it can also run easily in muddy areas.In addition, it can be matched with a portable diesel air compressor
3. High efficiency: Adopt advanced hydraulic technology, flexible and convenient operation, fast turning speed, short auxiliary time, and low failure rate.
4. Operating system: internal intensive operation platform, simple and comfortable operation
5. Each drilling rig undergoes a series of strict tests before leaving the factory to ensure the quality and performance of the product.
6. Drilling depths have 180m, 200m, 280m, 300m, 350m, 400m, 500m, 600m, 800m, which can meet the needs of different customers.
Durable & Reliable Drilling Rig Water Well Manufacturer from China | Sollant
Water Drilling Project and Customers
In March 2019, Colombian's regular customers come to visit Sollant water drilling rig workshop, we provide him with a complete agency plan.
In September 2019, Shandong Technology University came to discuss cooperation. We have been working with China's well-known universities of science and technology to jointly develop new models.
In December 2019, government officials from many countries in Southeast Asia came to discuss the water well drilling rig project.
Keep us Update on Latest Drilling Rig Water Well Newsletter
What are the main factors affecting the working speed of drilling rig water well?
When it comes to water well drilling projects, time will always be a major factor. You would like to complete the project within a specific period of time so that you move on with other businesses.
On a client’s side, they will want to have their water well in good time so that they start utilizing it to the fullest.
The time that is required for drilling the water well has a significant impact on the cost and the ROI of the business. A well-estimated time will make it easier to plan for your project.
So, how fast can the water drilling rig perform? In this article, we are going to look at the main factors that affect the working speed of a drilling rig water well.
How do I measure the speed of the drilling rig water well?
While drilling water well, it is prudent to rate your performance. Are you drilling it fast or is the process slow? To help you get the answer, here are some key parameters that you can use to rate your water well drilling speed:
Drill rate
The drill rate can be defined as the cumulative drilling time that you will spend on a water well. Using the drill rate, you can define the number of meters that the water drilling rig can drill at any given time.
The drill rate of a rig can be fast or slow. If it is fast, you will be able to complete your water well drilling project in good time.
Several factors determine the drill rate of a water drilling rig. One of them is the drill bit selection. A powerful drill bit will have a faster bit rate than a less powerful drill bit.
The drill rate is also determined by the rock type of the water drilling site. The drill rate on a hard rock will pretty different from that of a soft rock.
The weight of the drilling rig may also affect the drill rate. This is in addition to the rotary speed that is required for the optimum water well drilling.
Would you like your water well drill rig to have the maximum drill rate? It is vital to consider all the factors that tend to affect this type of performance measure. Try as much as possible to tweak them so that they are optimized for a fast drill rate.
Trip time
Trip time is another key parameter that you can use to gauge your performance in terms of the drilling speed. The trip time can be defined as the time taken for pulling a drill string.
The longer it takes to run the drill string the longer the trip time. Most water well drilling companies aim at achieving short trip times.
One of the factors that determine the trip time of a water well drilling rig is the depth of the well. The deeper the borehole, the longer the trip time. However, this may still vary depending on other variables such as the type of drilling rig that you are using. If the rig has a high capacity, then it will have a short trip time.
The amount of mud to be extracted will also determine the duration of the trip time. We cannot overlook the efficiency of the water drilling crew in determining the trip time.
In most cases, the trip time of a water well drill is estimated to be 1 hr/10000 ft. Water well drilling equipment that has long bits and capable of running non-stop for many hours are designed to have many short trip time.
The main reason why short trip times are recommended is to minimize the build-up of soil and rock in the water well. You will have clear water well and the drilling process will be easier and more fruitful.
You should always keep trip time in mind whenever you buy a water drilling rig in China
Factors affecting the drilling time
We can define a water well drilling time as the duration that will be taken between the time you start drilling a water well to the time when the project is complete. The time is usually determined by several factors among them the state of the drilling rig.
Here are some of the key factors that determine the working speed of a drilling rig water well:
Well drilling rig
The type of well drilling rig that you use will determine the working speed of the drilling process. This is to imply that some drilling rigs are faster than others.
When you buying a water well drilling rig, take your time to analyze its specifications. The more powerful the drilling rig the faster it will be. For example, deep water well drilling rigs are expected to drill deep within a short time.
When choosing a powerful drilling rig, you have to keep in mind the drilling water well cost. The higher the price of a water well drilling rig, the more powerful the rig.
Rock, soil, and mud
The nature of the ground where you are planning to drill a water well will determine the working speed of the drill rig.
The time that you will take through a rocky surface is very different from the time that you will take to drill through soft soil or even mud.
You are likely to take a long time if the drilling rig is not suitable for a particular ground. For instance, if the drilling is designed for sand drilling will take a long time to drill through a rocky surface.
The secret of navigating around this issue is choosing the right water well drilling machine type. Do a quick study of the possible drilling soils that you are likely to work on then choose the best drill rig water well for the job.
Having prior knowledge of the water drilling site will also help in saving time as you will prepare yourself adequately for the drilling work.
Water drilling rig transportation
Transporting a water drilling rig can be a hectic and time-consuming task. It may slice out a big chunk of water well drilling time, especially if the water well drilling site is located in the remotest part of the country.
It is for this reason that we have portable drill rig water well. They are designed to ease the transportation problem. You can easily move the drilling around to the desired site where you intend to drill the well.
Some drilling water well companies prefer trailer-mounted drilling rigs. These drilling rigs are loaded onto a trailer or truck and transported to the location.
If the transport or mobility of the water drill rig is not solved, then expect to waste many hours on the water well drilling project.
Water well drilling support services
The water well drilling process is usually backed by numerous support services. They include drilling rig maintenance power supply among others.
Are the support services for the water drilling rig easily available? If the answer is yes, then you will save time when it comes to the actual water drilling project.
Delays caused by the inaccessible services can hamper the speed of the water well drilling. For example, you will waste time waiting for the repair services on a water drilling machine that has just broken down.
Water hole problems
While you may intend to achieve a fast working speed of drilling water well, some unavoidable circumstances can hamper your speed and make the process slower than you expected. One such issue is the water hole problems.
Hole problems such as blowout and collapse of the water hole will force you to start the drilling process from the scratch. If you were planning to complete the drilling within a particular duration, you will have to restrategize your goals.
Hole sloughing is one of the most common water hole problems. It usually occurs when the soil heaves into the borehole. The problem can still occur regardless of the attention that you give water well.
The most effective way of preventing hole problems is by conducting proper geological studies on an area before you embark on the drilling operations. This way, you will be able to make sound judgments before the drilling process.
Weather and other natural factors
Your speed of drilling a water well can also be determined by natural factors such as weather conditions.
Hurricane, floods, and tornadoes can slow down the speed of drilling a water well. In some cases, they can throw the entire water well drilling plan into disarray.
So, when designing a plan for the upcoming water well drilling project, always keep in mind the weather conditions. You can even draft an alternative plan in case the conditions are not in the way that you wanted.
Company philosophies and crew efficiencies
As a water drilling company, what systems have you set up to achieve a high-speed water drilling process?
Even though you may be having the best water drilling equipment, all may be in vain if you do not have the right systems that will help you achieve fast drilling.
You should have an effective work culture that cultivates productivity when it comes to water drilling projects.
You should also have a qualified and efficient crew that will be responsible for handling the operations of the drilling rig.
A combination of the proper work ethics and hands-on crew will result in timely and productive water well drilling projects.
Parameters for measuring the water drilling rig
How can I tell that the working speed of my water well drilling rig is fast or not? Some key parameters can help you to measure this time factor.
-Bit records
A typical water well drilling rig has drilling bits that can provide valuable information regarding the time that you will take to drill the water well.
Most drilling bit manufacturers incorporate the date columns which can give you an estimated time that you will take to drill the water well or even a borehole.
The drill bit-life hours can also give you valuable insights about the cumulative drilling time of the water well.
-Mud records
Water drilling companies can also use the mud records to estimate the working speed of the drilling rig. These records provide the expected drilling-time data of the well.
The mud records are usually updated and maintained daily and they tend to give details of the mud situation in particular water well.
From this data, the drillers will know the time that should be allocated for each water hole problem and how they can speed up the water well drilling. For example, from the mud records, the drillers will know when to expect to slough in particular water well.
-Driller water well history
How long have you been in the business of drilling water wells? As an experienced water well drilling company, you can use your history to gauge the speed of the drilling rig.
His trick usually comes to play if you have used a similar water drilling rig. As long as the rig has the same features, you should be able to estimate the expected speed.
Are you drilling in an area that you have ever worked on? You can use the historical records to know the estimated time that you will take to drill the well.
-Production histories
You can use the production histories and even scout tickets to assess the speed at which the rig will drill a water well.
The production history may include data from the water wells that are within that area. They can provide valuable projections of how long you should expect the drilling to take place.
Conclusion
From this guide, we have seen that several factors tend to affect the working speed of the drilling rig water well.
Most of these factors are controllable. You only need to make the right decisions and everything will be within your reach.
For example, you can buy the best water drilling rig that is designed for fast drilling. You should also consider consulting other water drilling experts for speedy drilling.
